Citrus Haven Maternity Center

Site: N Orange Ave, Orlando, FL

For this group project, we were tasked with using 3D design software, 2D drawings, and physical modeling in order to create a birthing center. This structure measures at roughly 25,000 sq. ft. and includes birthing, educational, and community engagement spaces that are centered around maternity and childbirth.

Overview

This project is a testament to resilience, growth, and renewal. Inspired by the vitality of citrus groves, we aimed to provide a sanctuary that both uplifted and empowered women throughout their pregnancy journey. By fostering a sense of community, families are encouraged to connect with and support one another, allowing them to share their experiences in maternity and parenthood. At its core, our concept celebrates the strength found in connection, offering opportunities for transformation to the local community. By providing a haven for rest and renewal, we empower guests to grow, flourish, and prosper.

Section Drawings

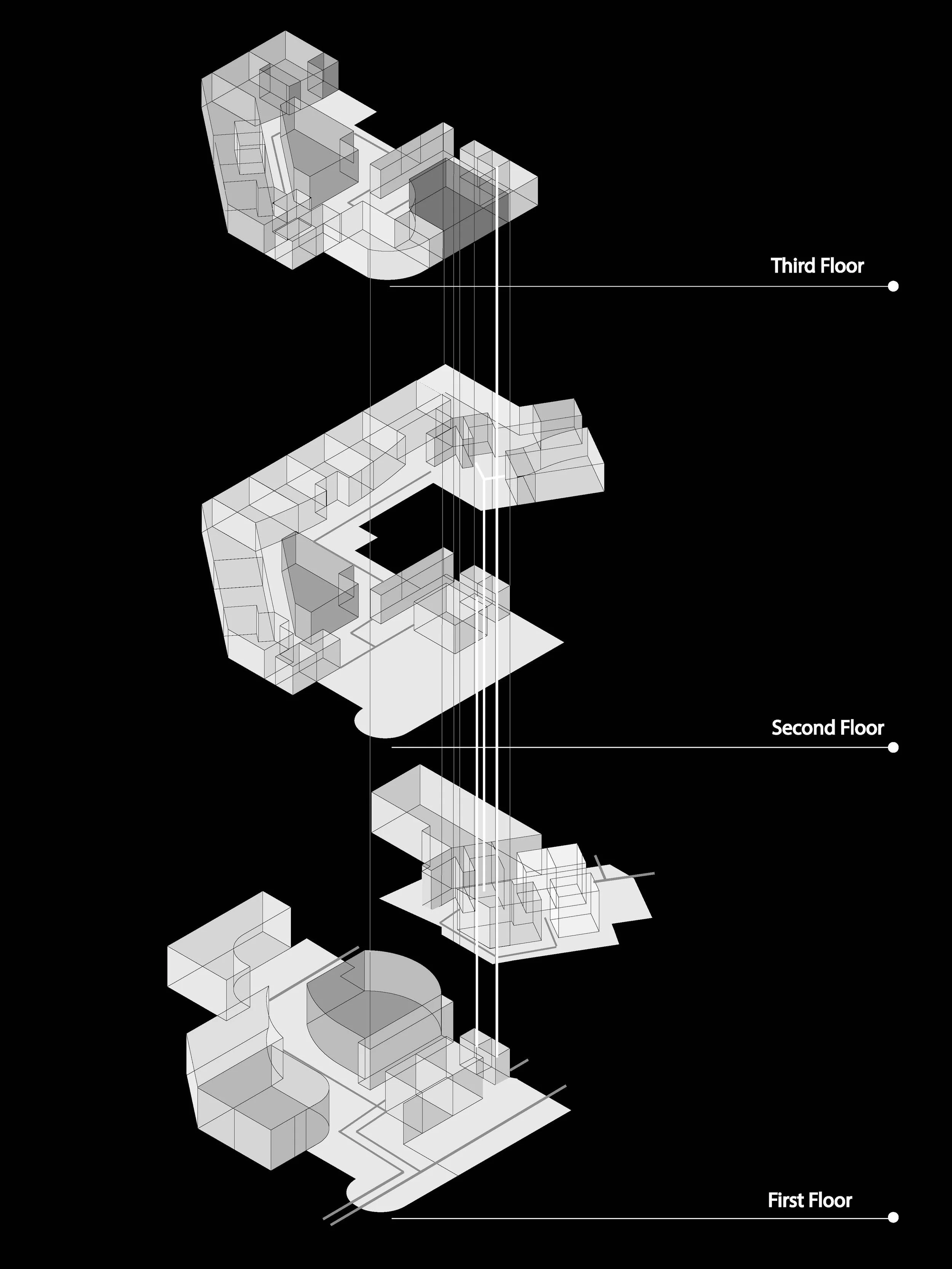

Exploded Axonometric

Citrus Haven Renders

  • Courtyard

  • Primary Entrance

  • Building Exterior

  • Lobby

  • Semi-Private Corridor

  • Third Floor Mezzanine

  • Labor and Delivery Room

  • Labor and Delivery Room

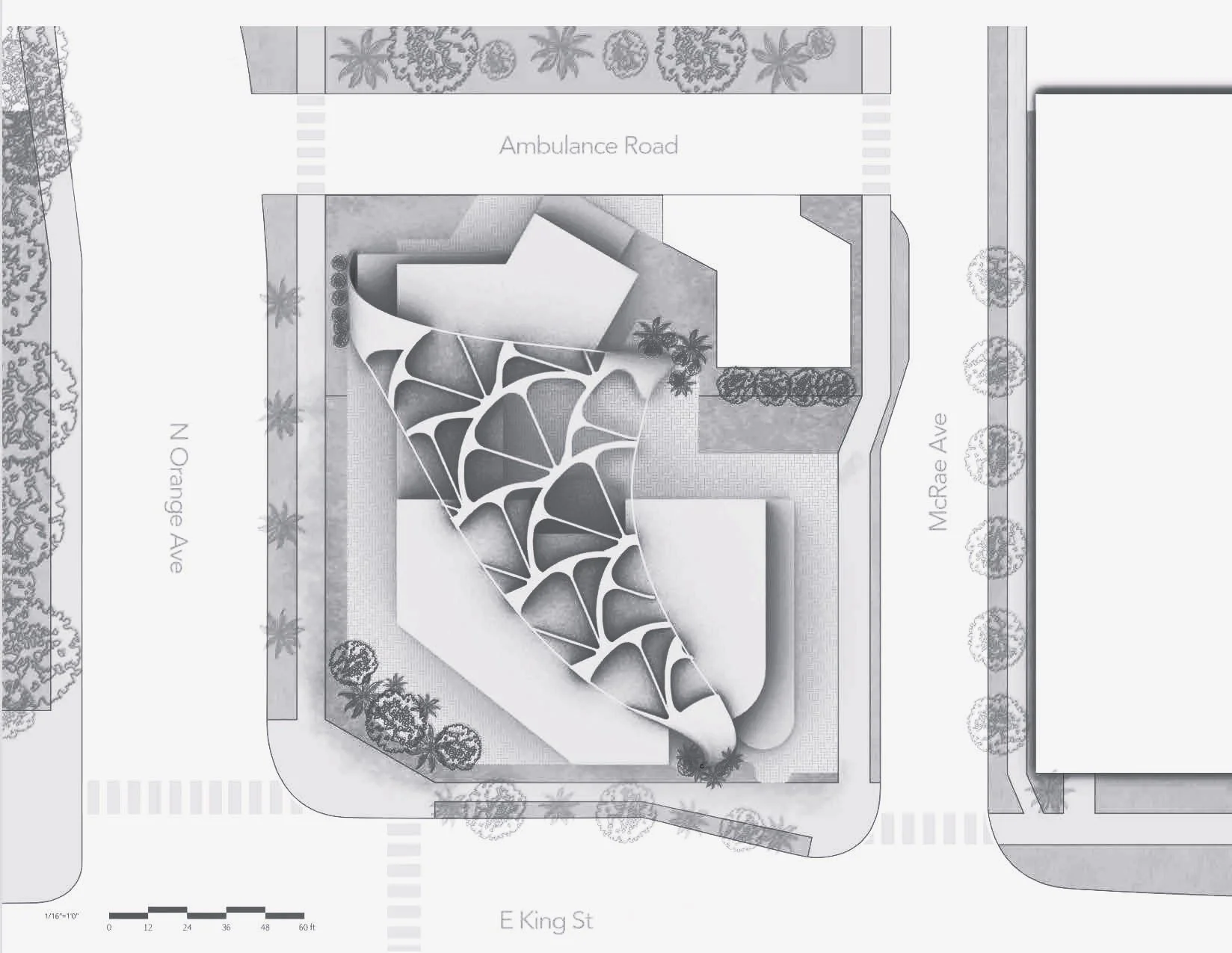

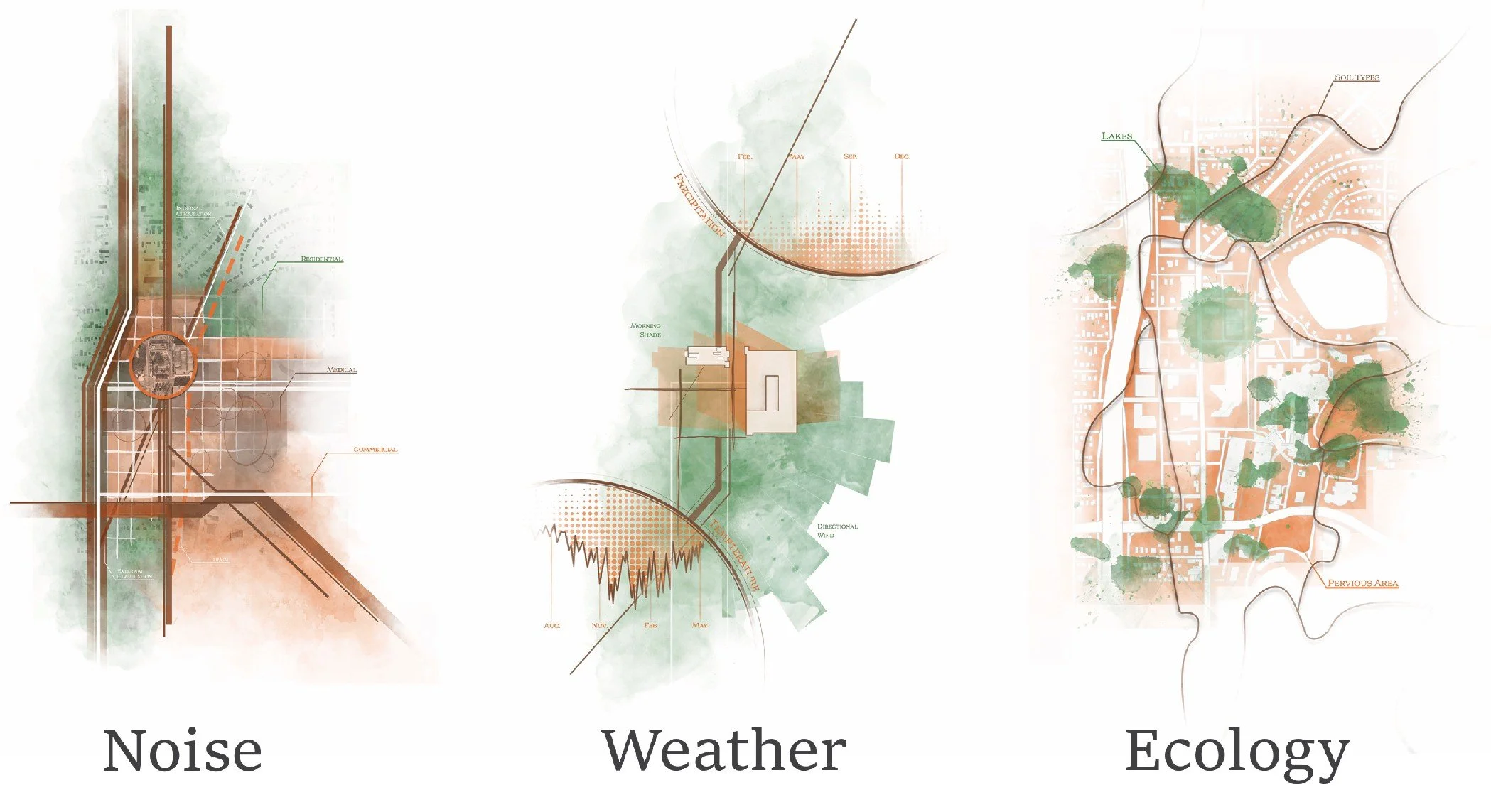

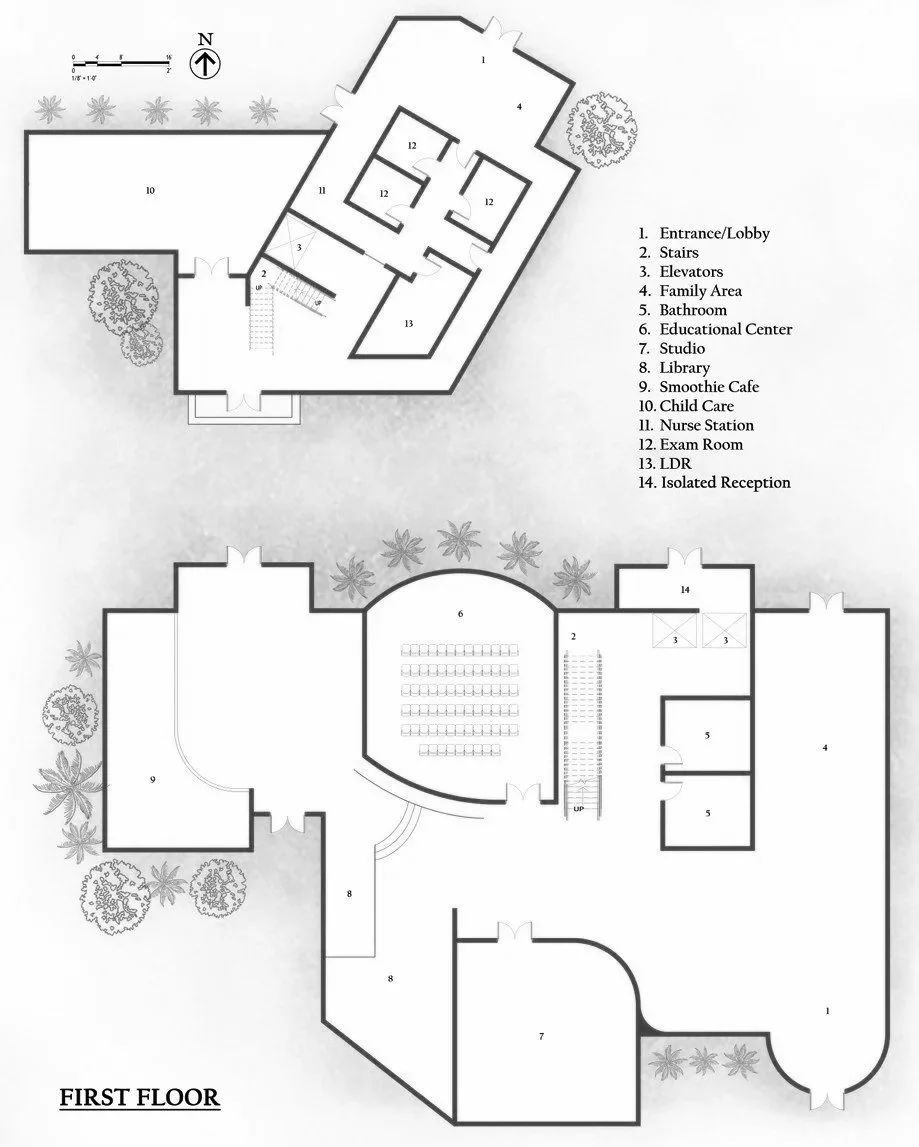

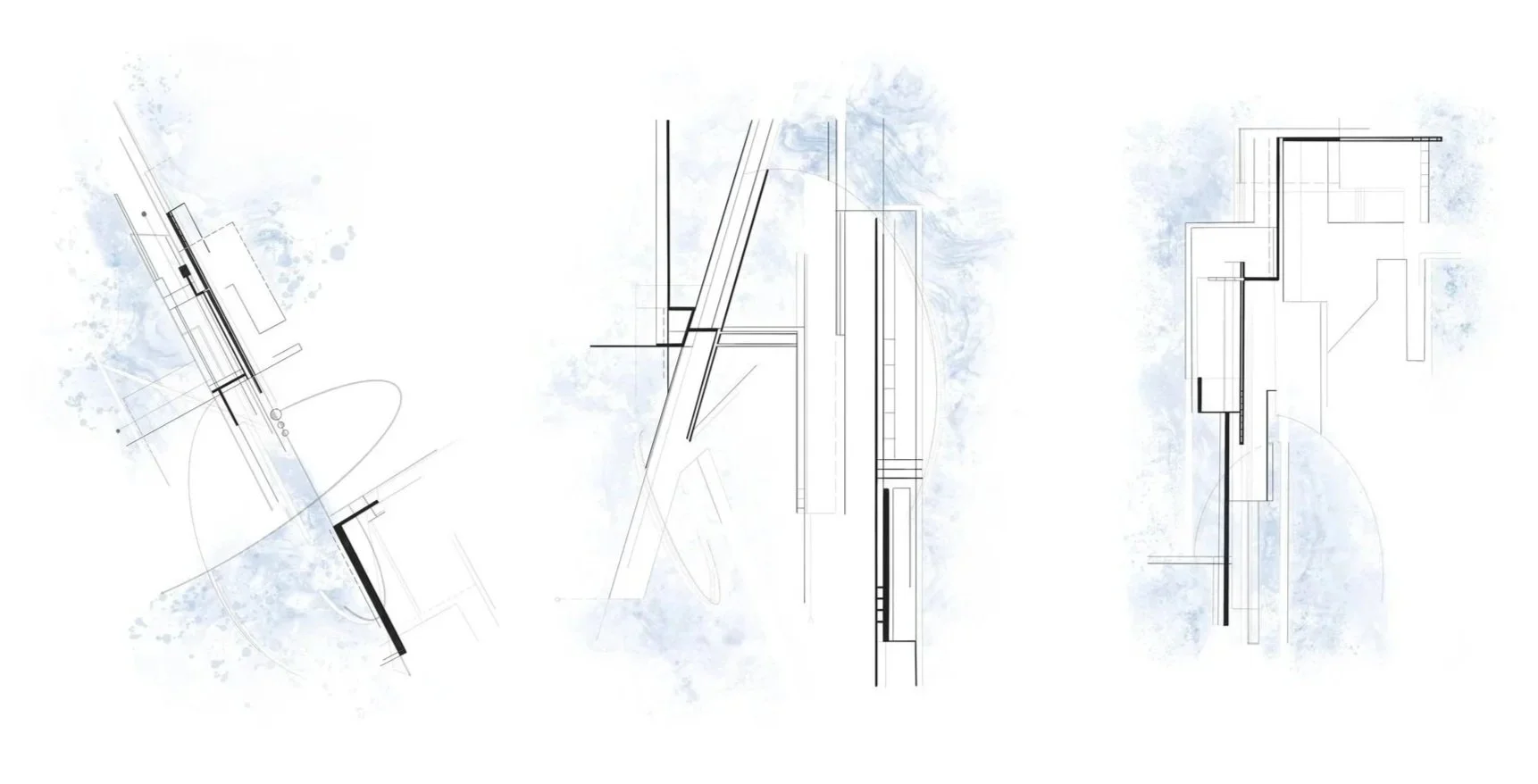

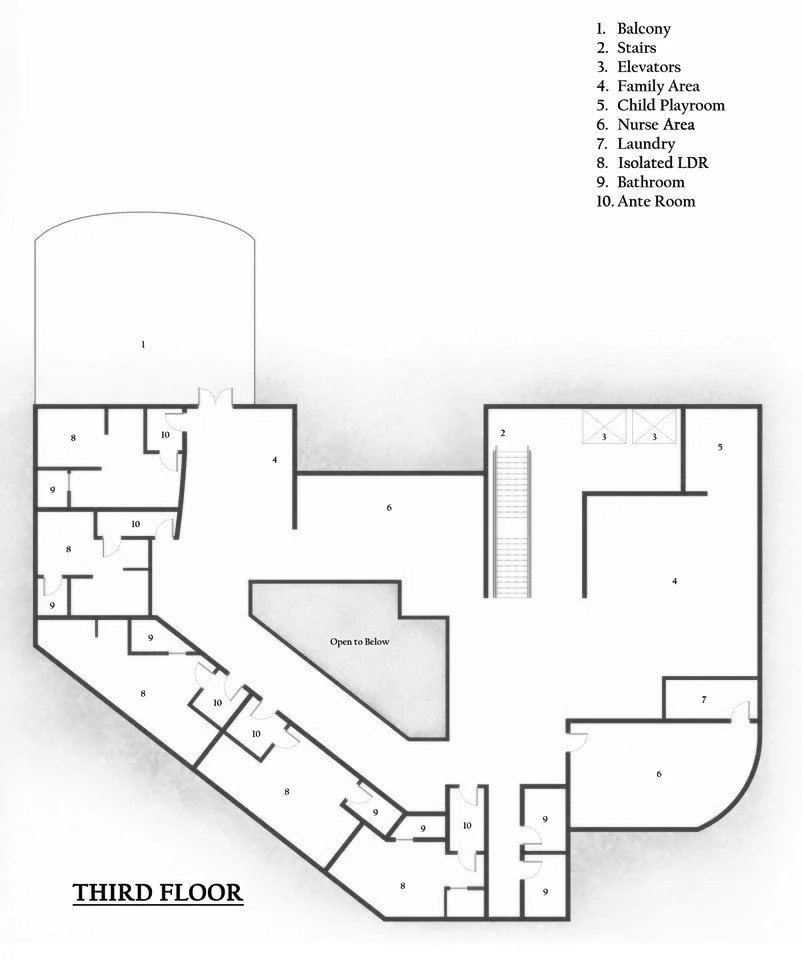

Site Studies & Floor Plans

This project is a testament to resilience, growth, and renewal. Inspired by the vitality of citrus groves, we aimed to provide a sanctuary that both uplifted and empowered women throughout their pregnancy journey. By fostering a sense of community, families are encouraged to connect with and support one another, allowing them to share their experiences in maternity and parenthood. At its core, our concept celebrates the strength found in connection, offering opportunities for transformation to the local community. By providing a haven for rest and renewal, we empower guests to grow, flourish, and prosper.

Detail Drawings

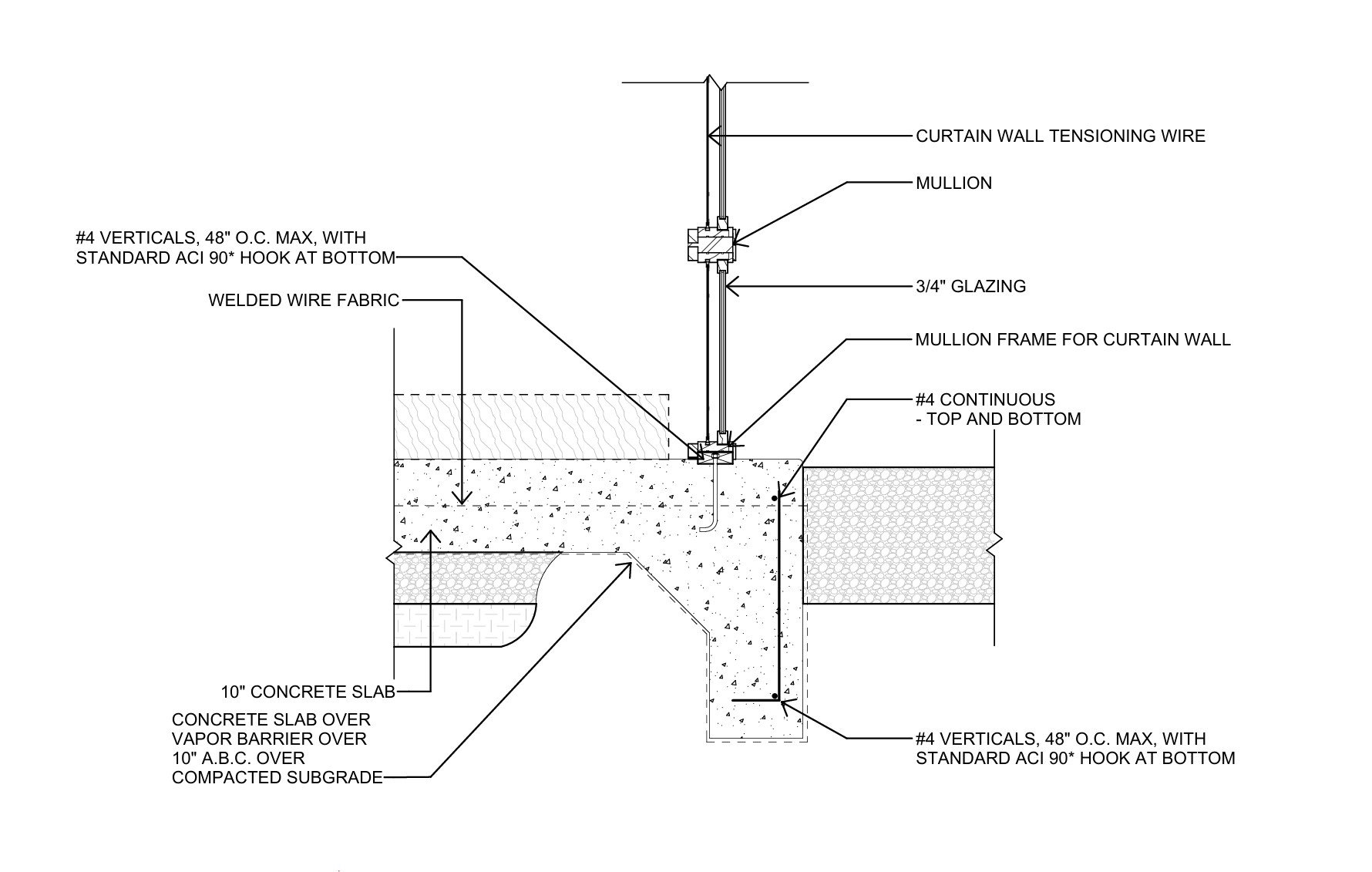

  • Curtain Wall Detail

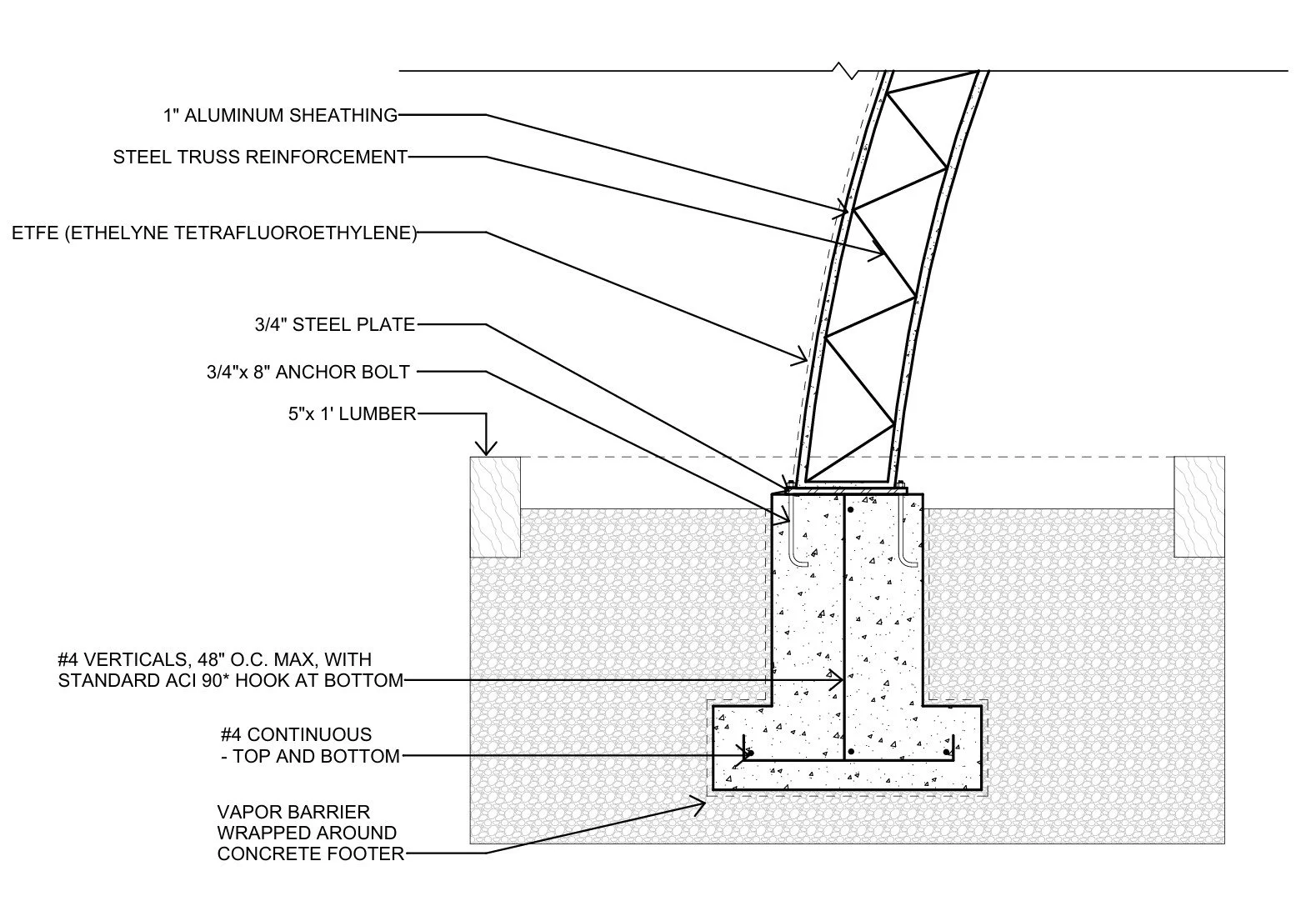

  • Sun Shade Ground Detail

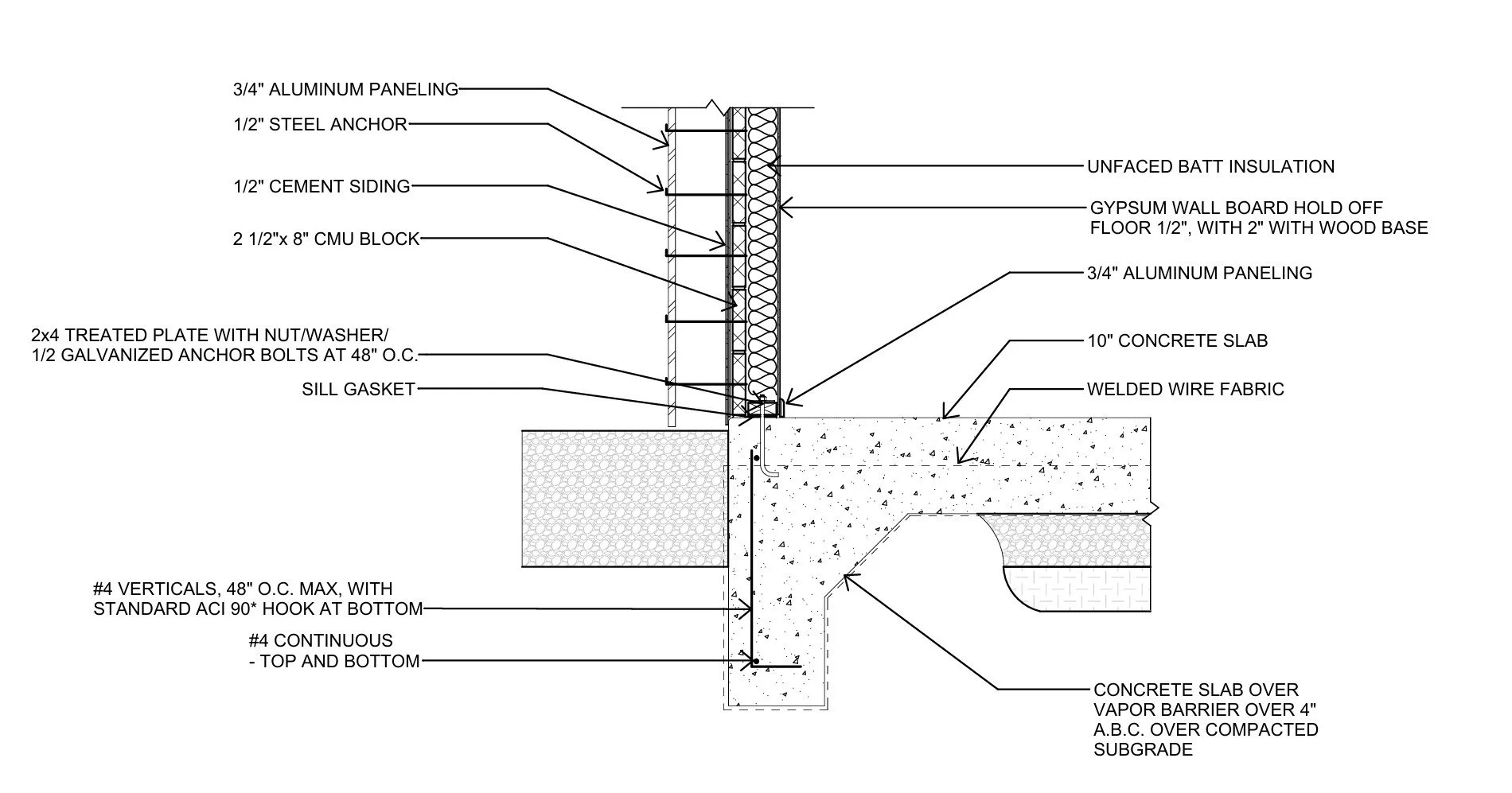

  • Exterior Skin to Wall Detail

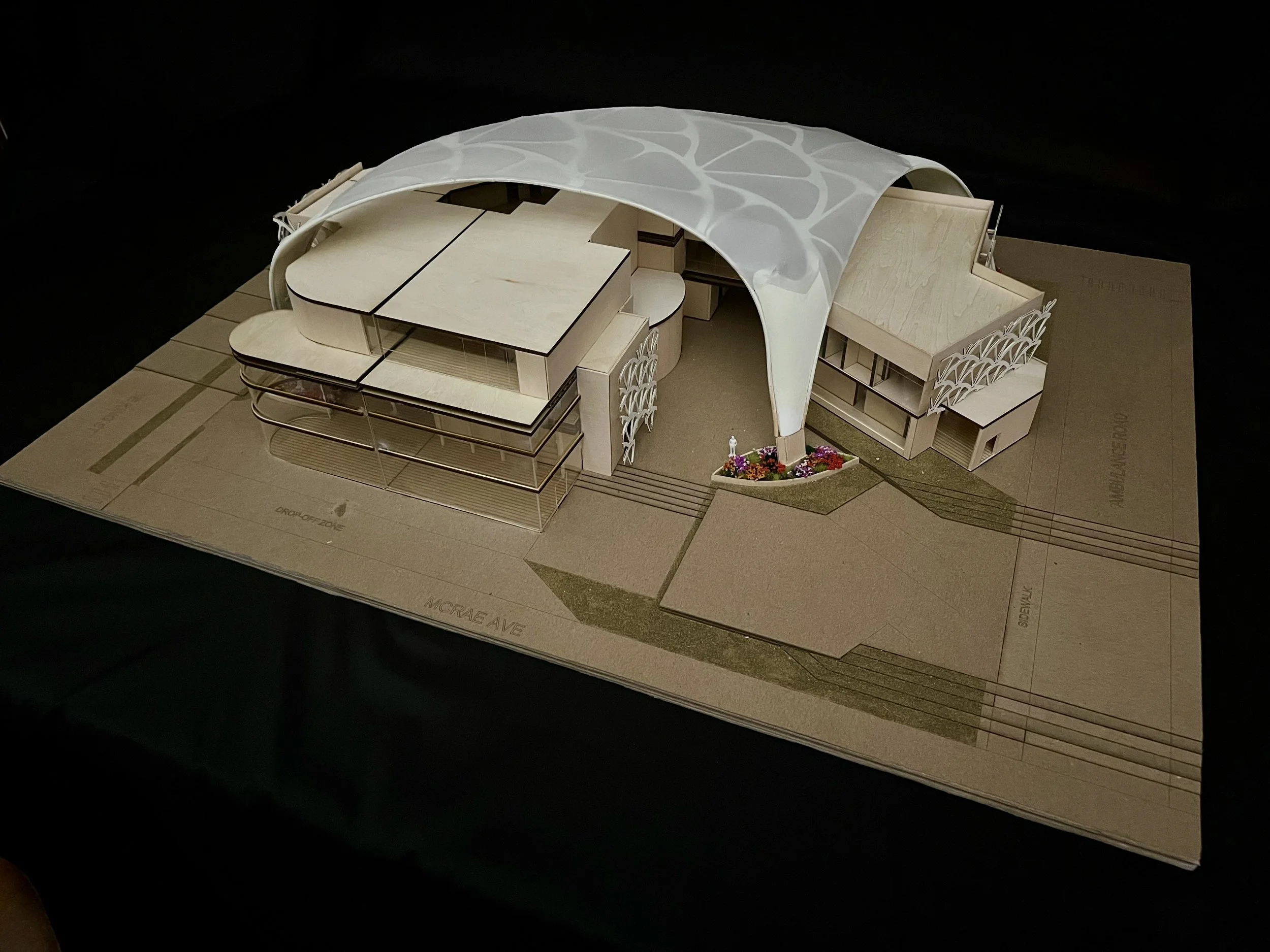

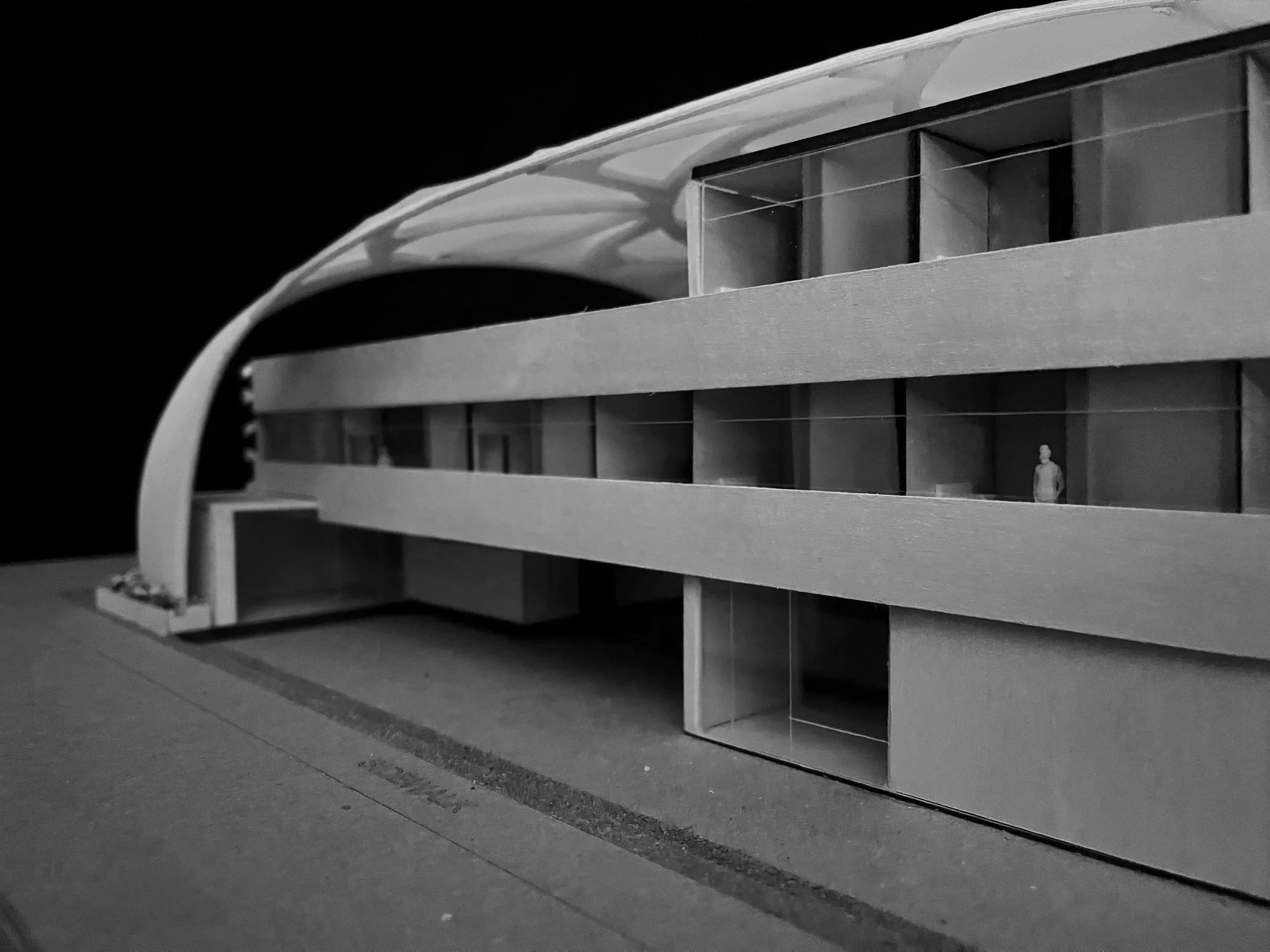

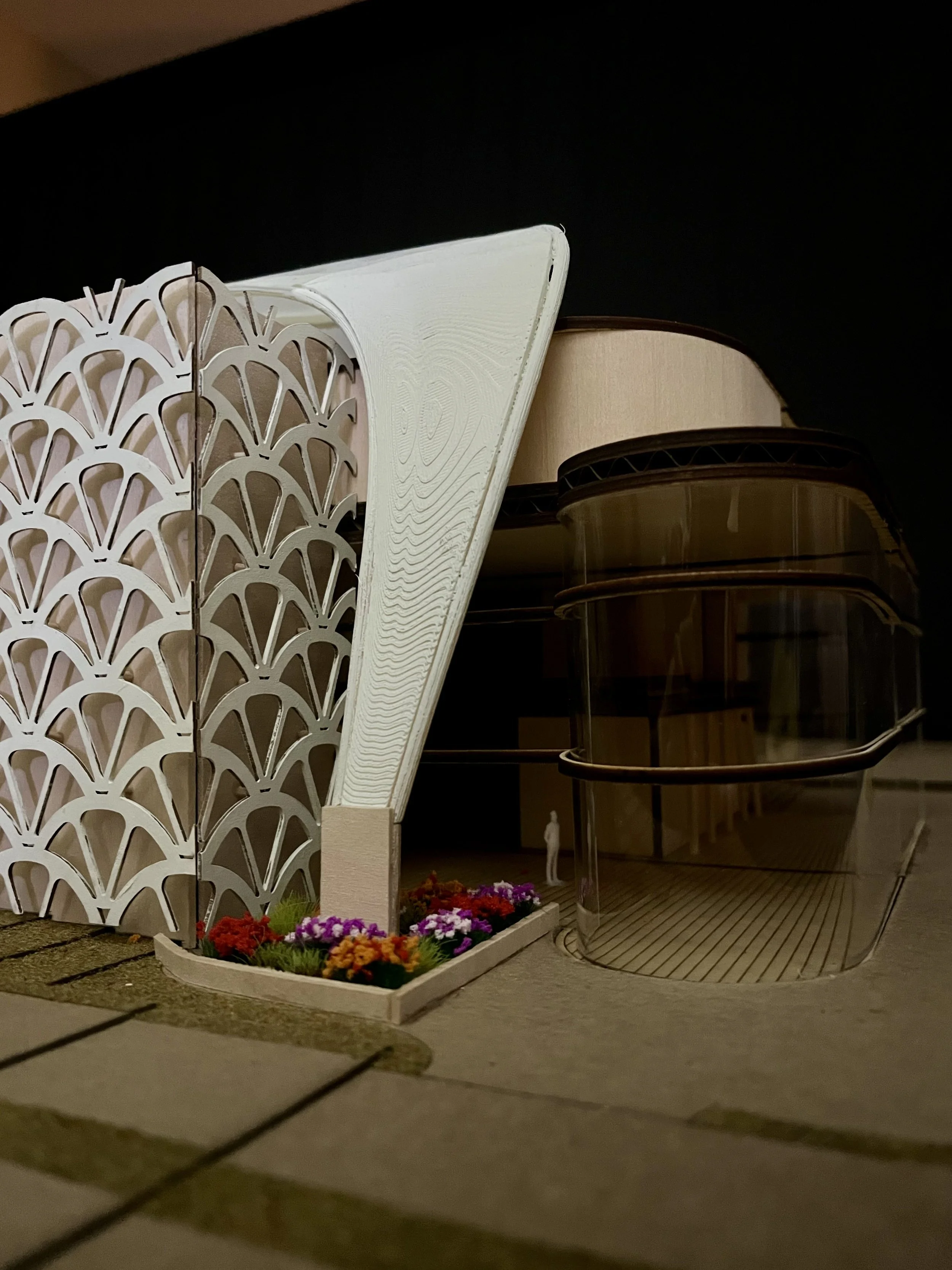

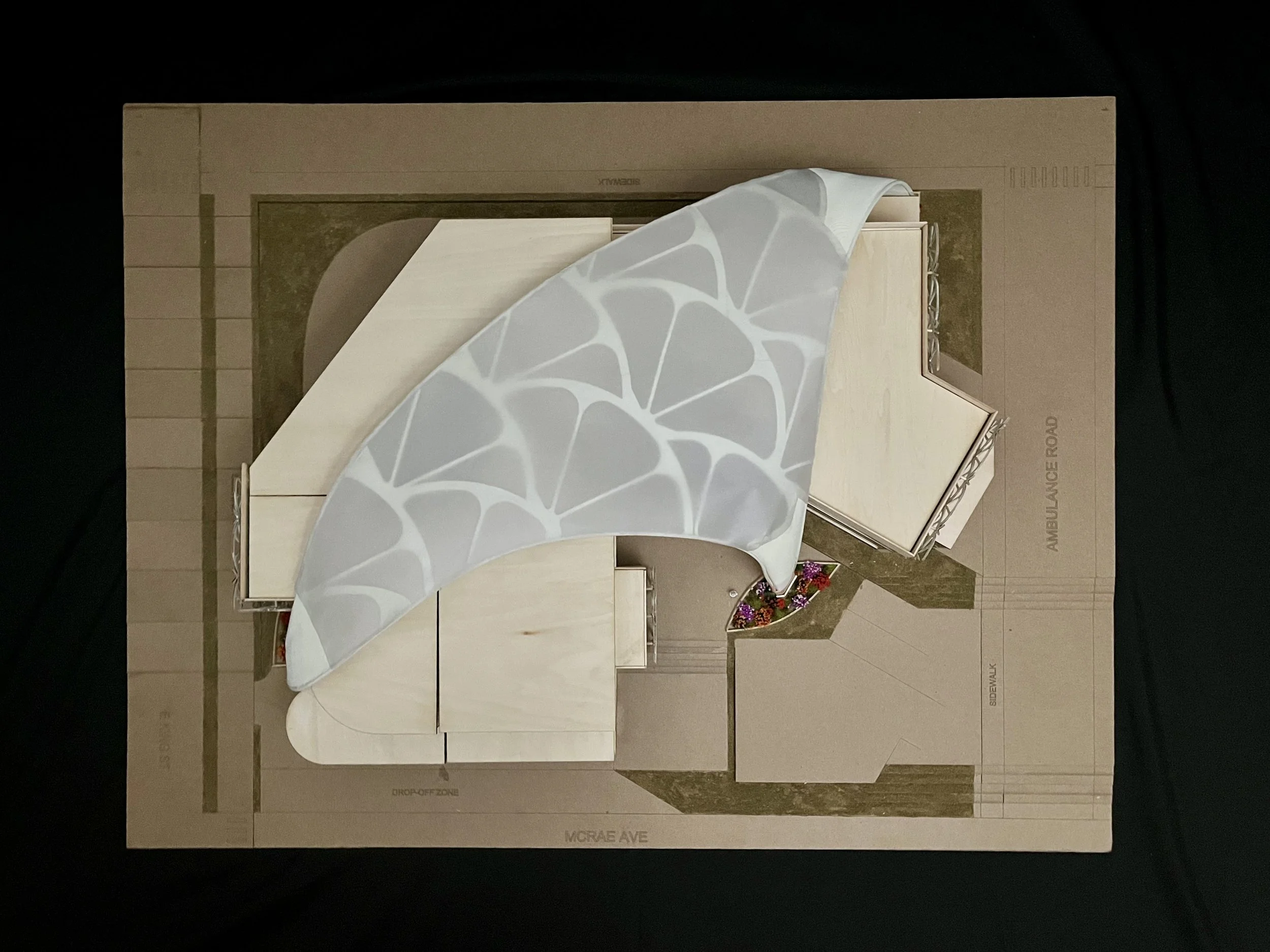

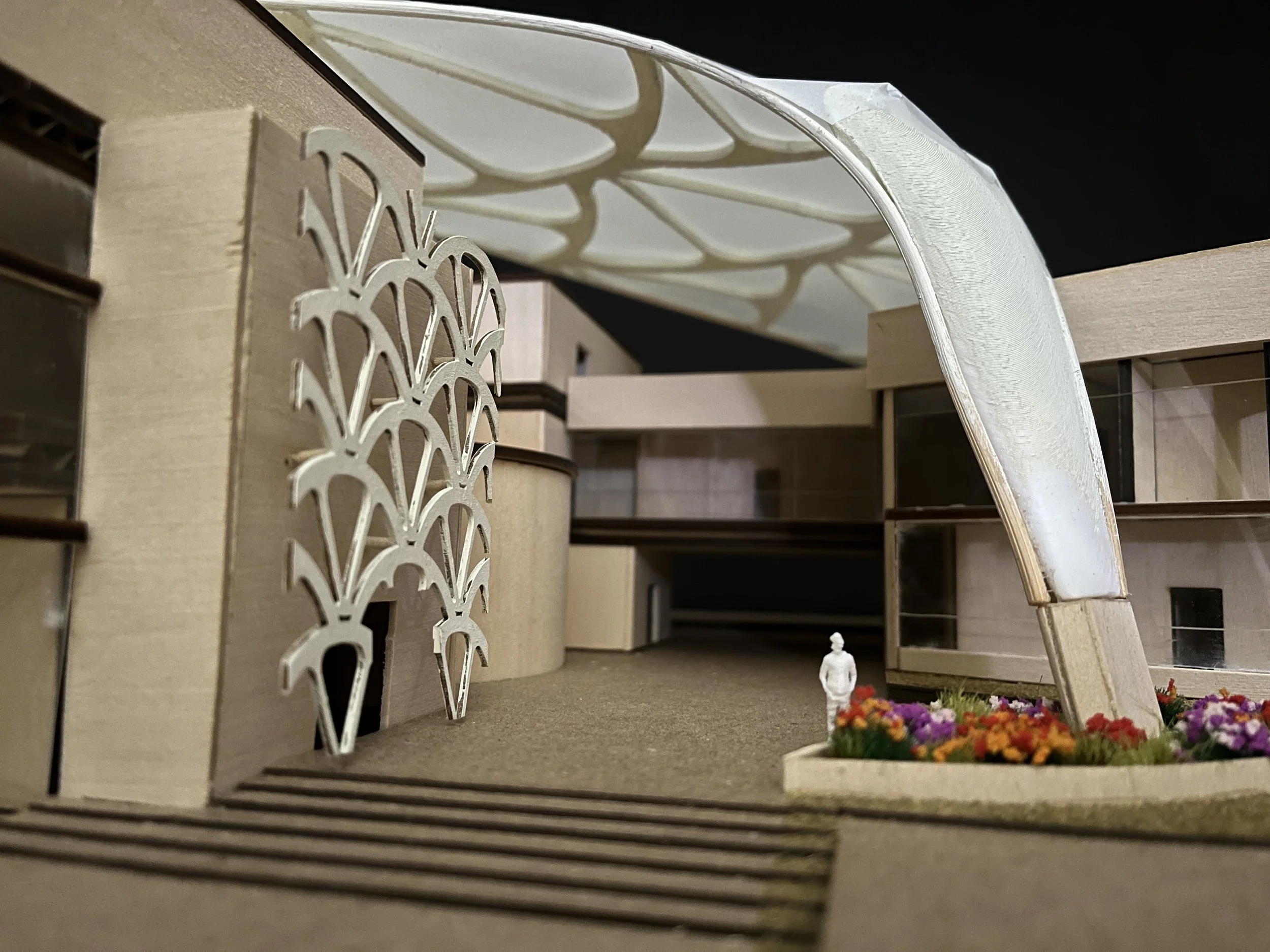

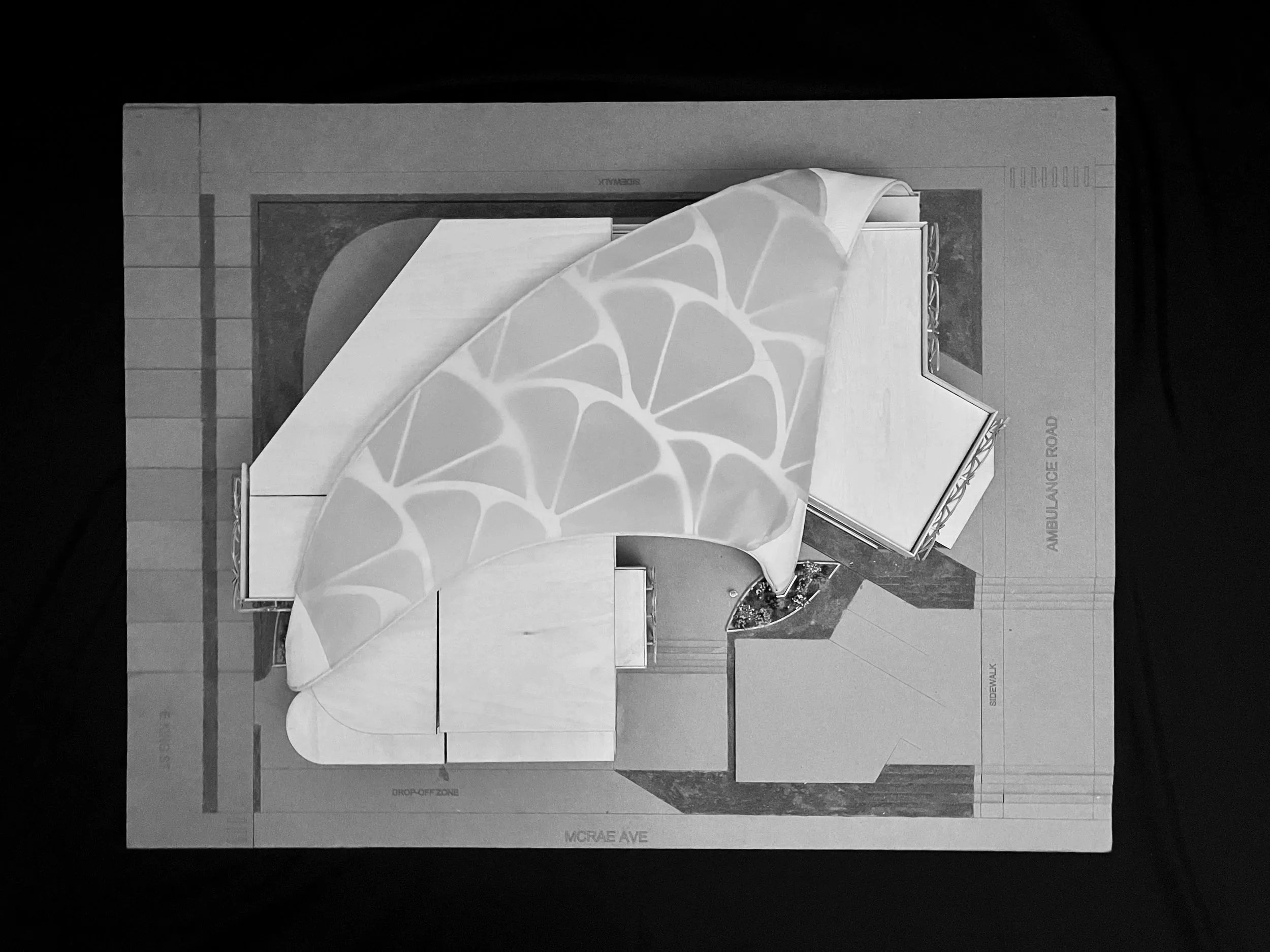

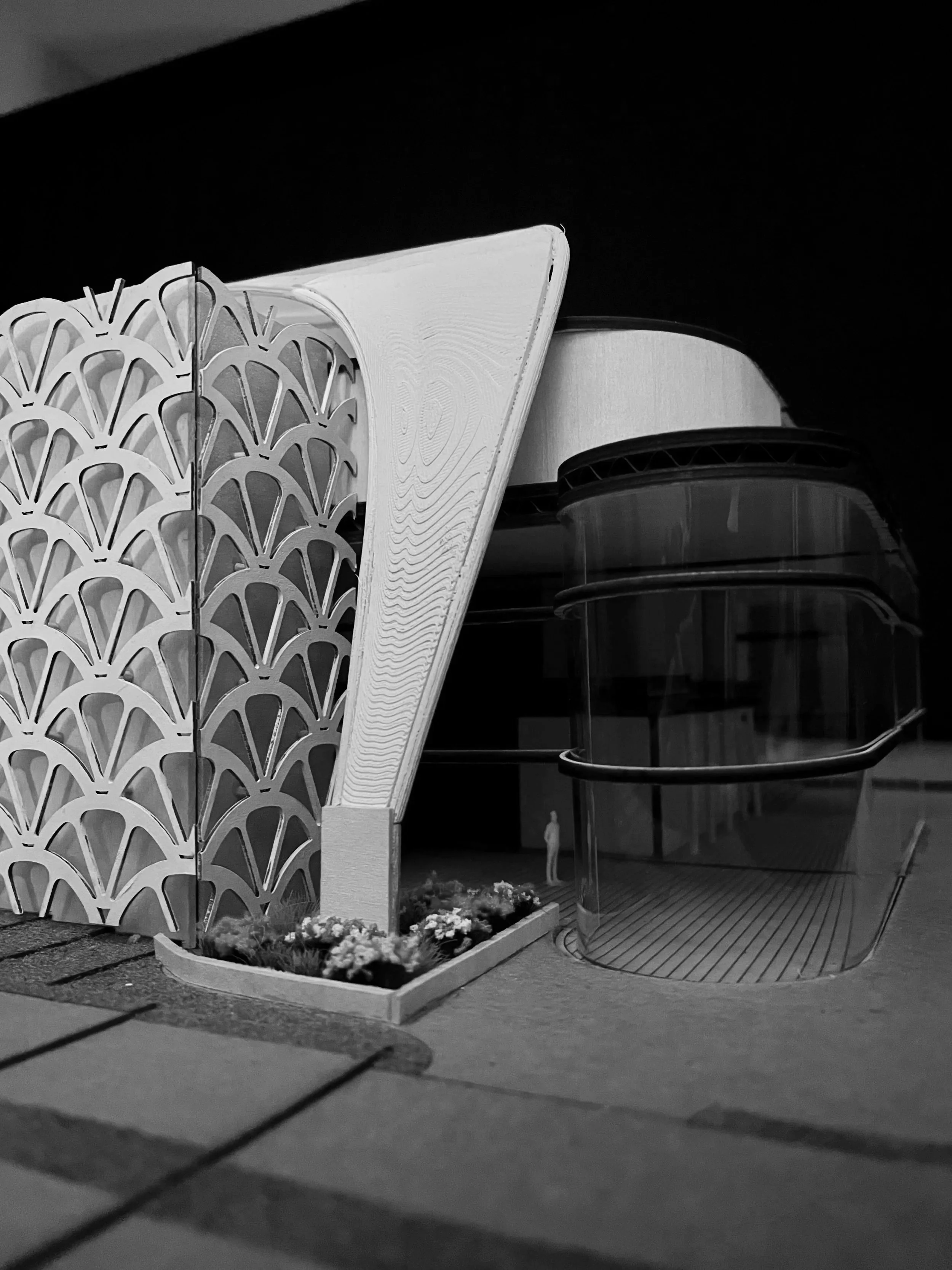

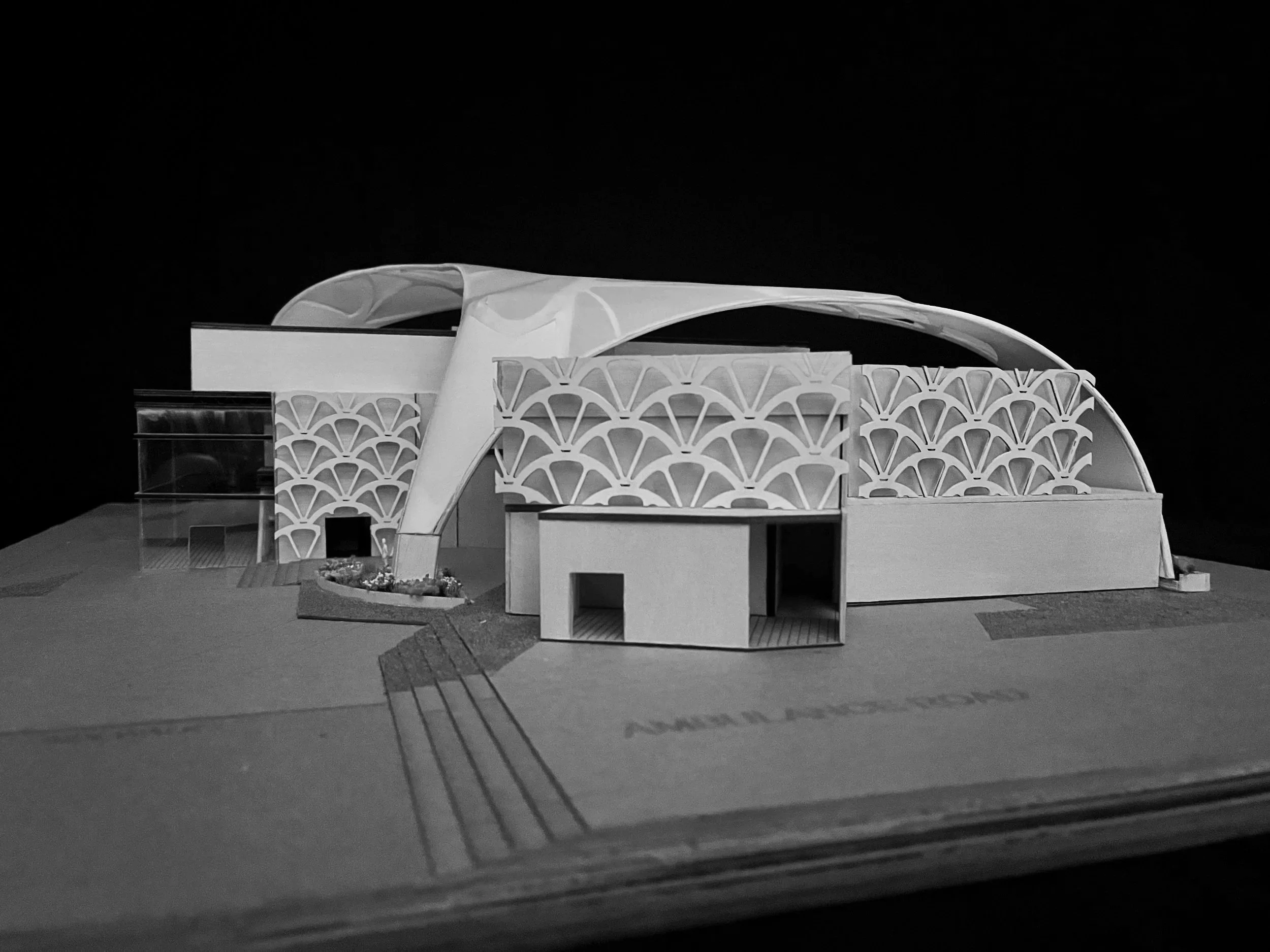

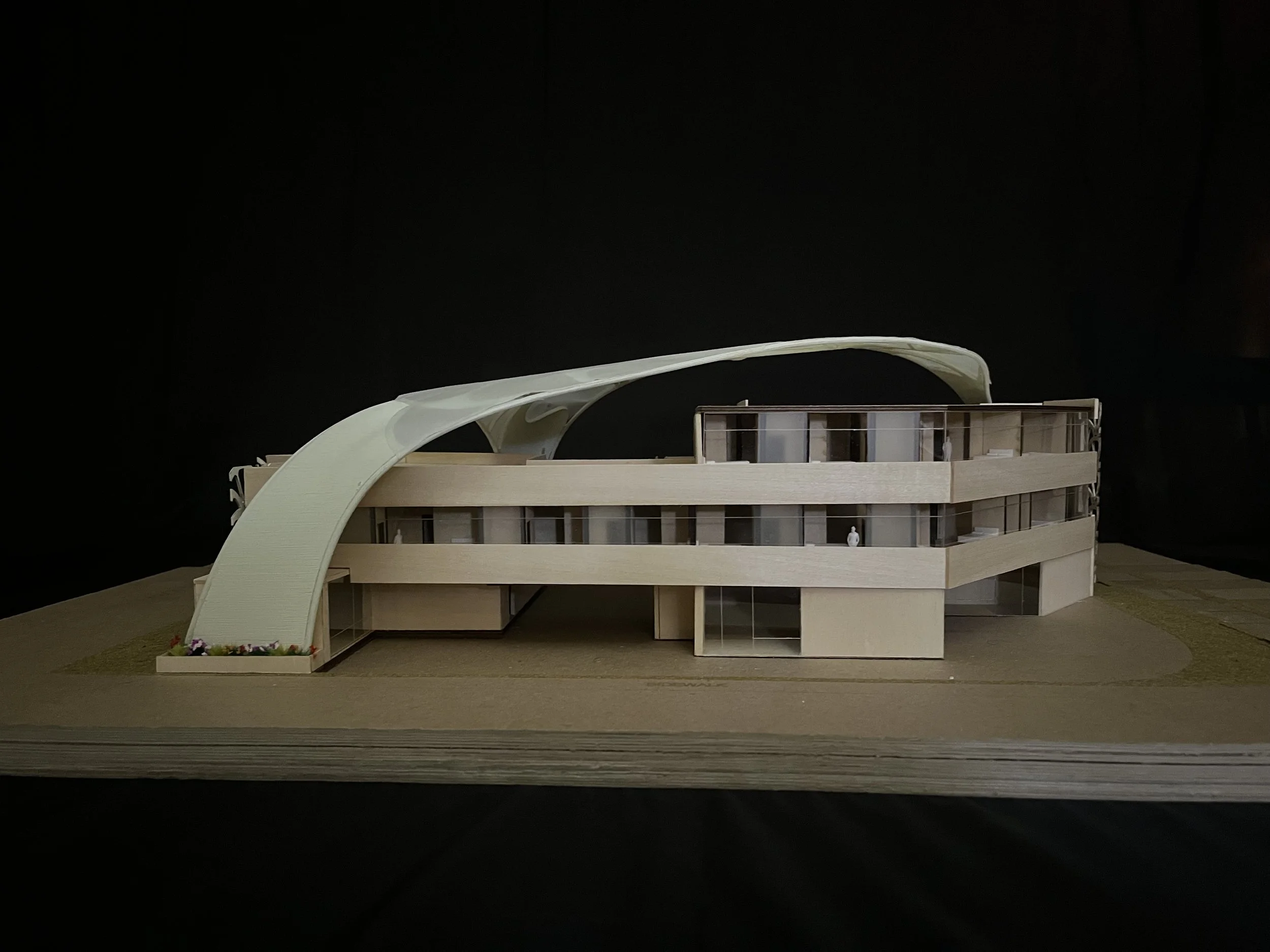

Model Photos

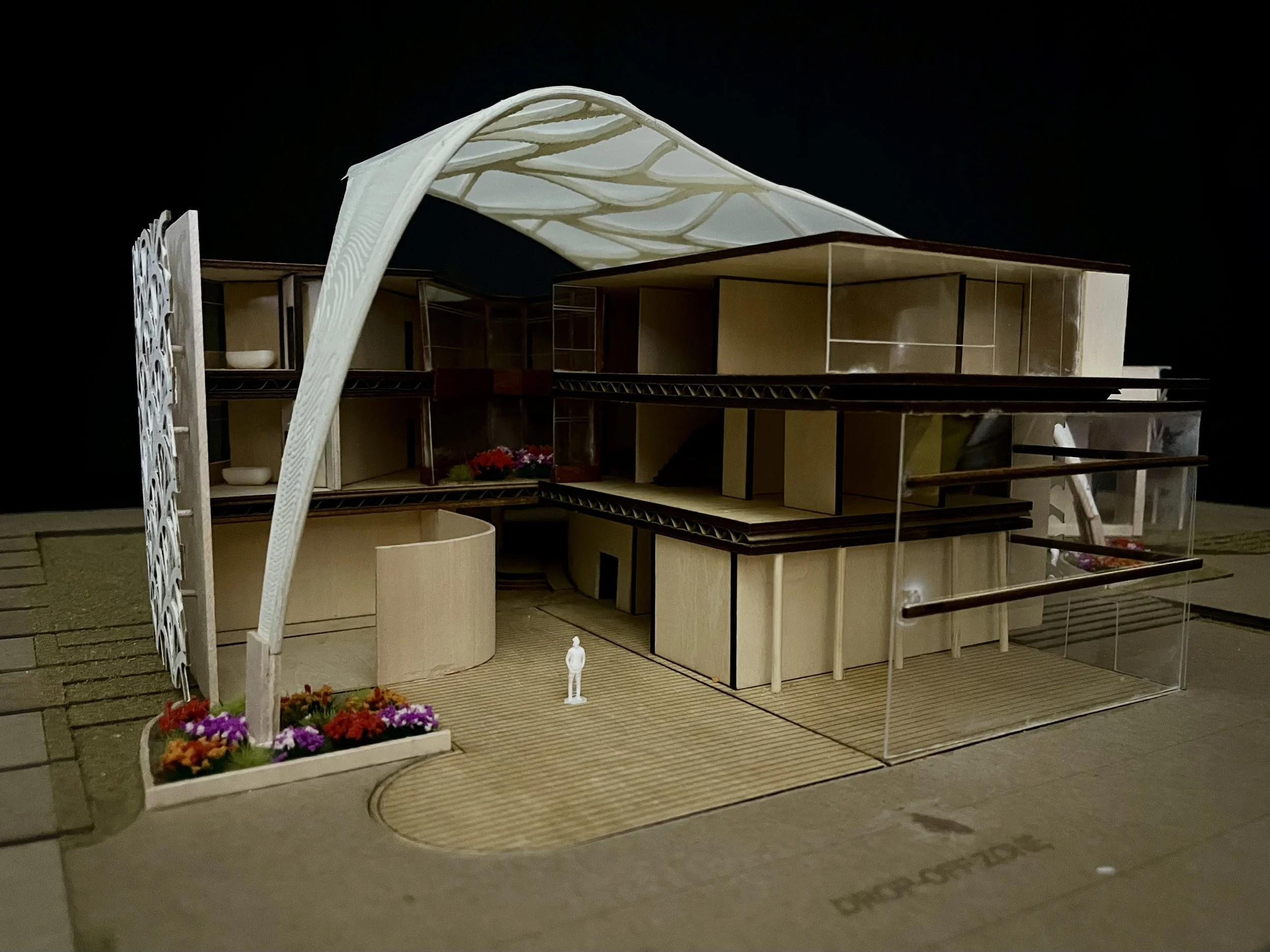

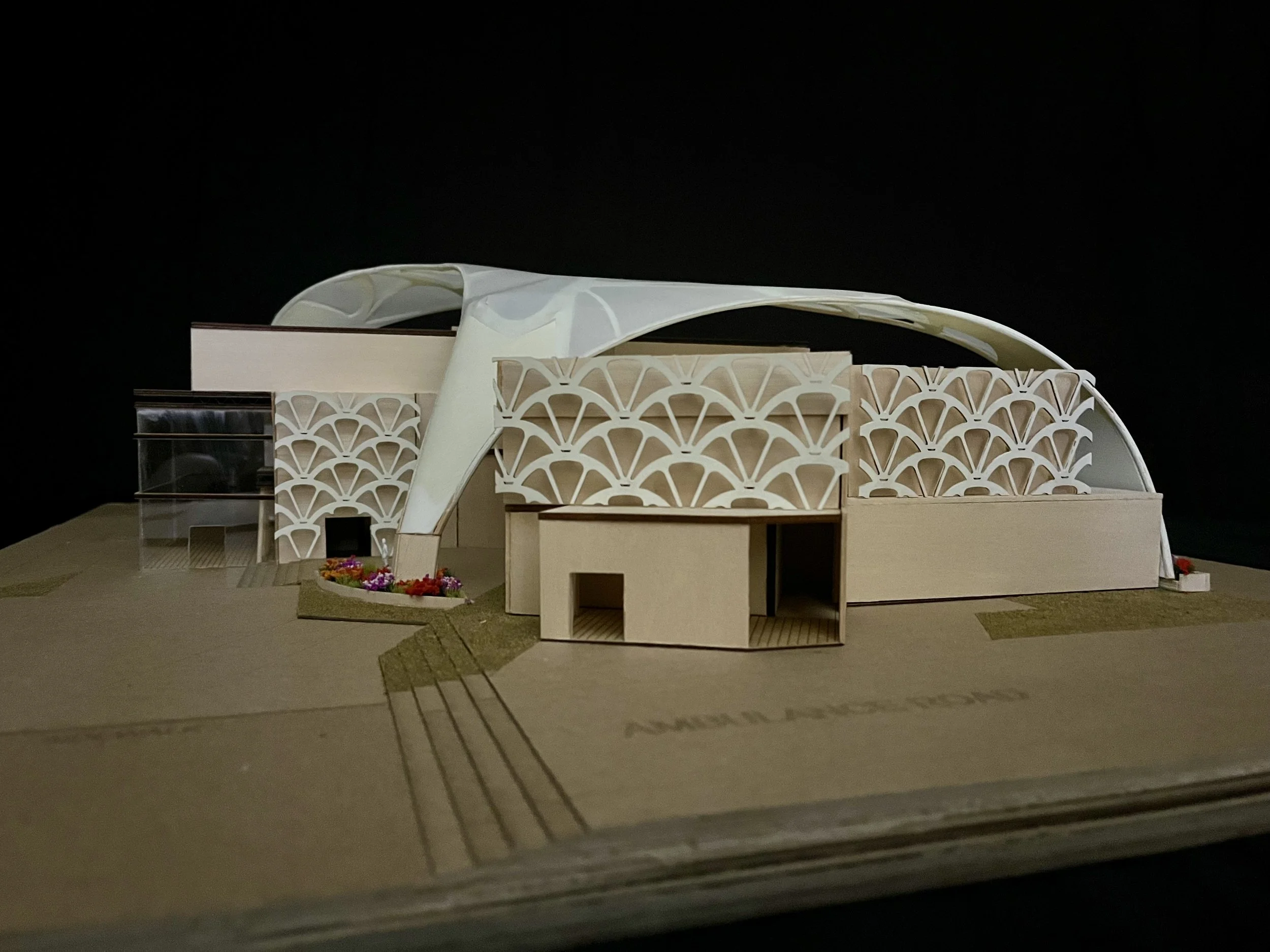

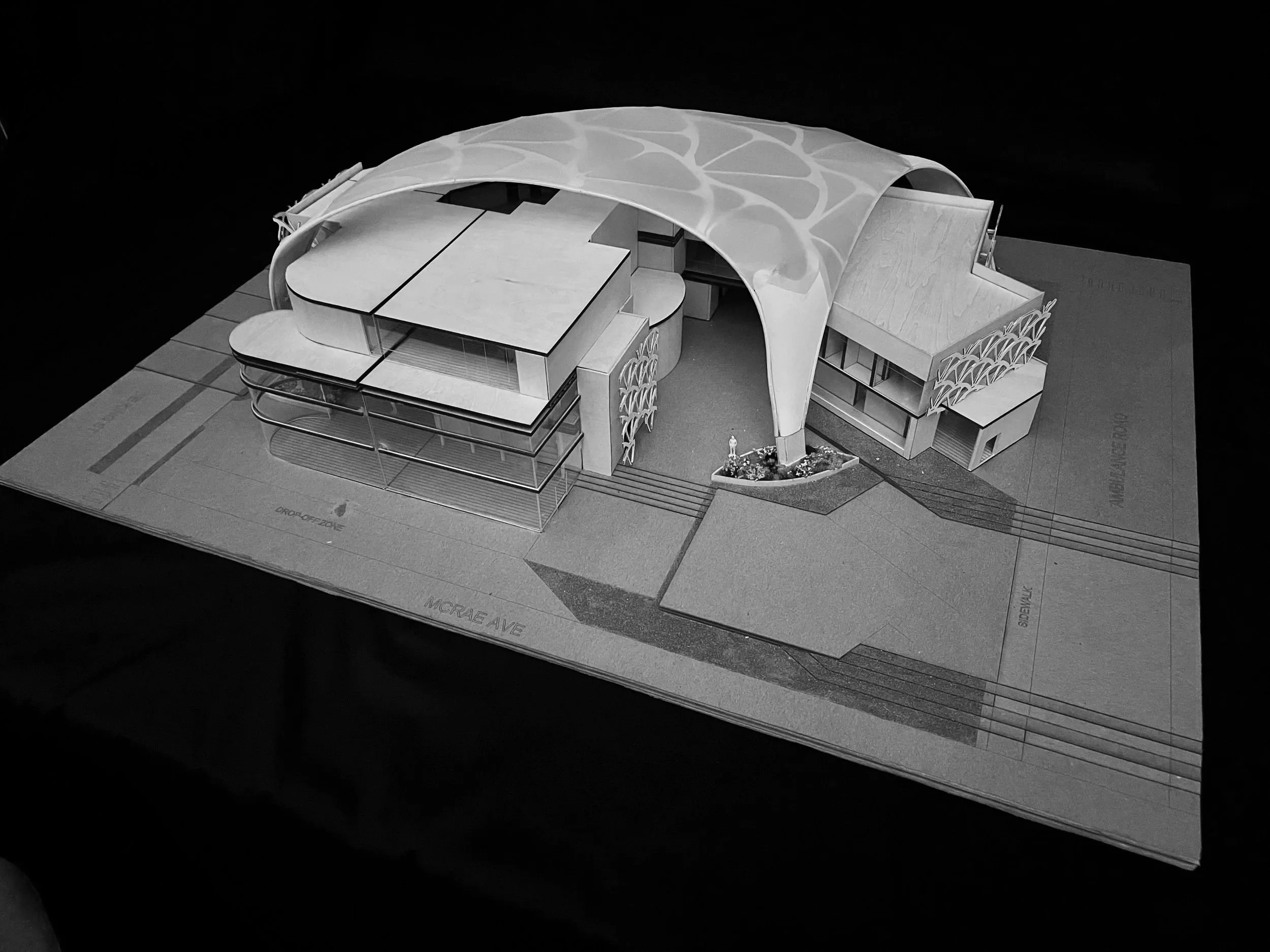

Through a combination of 3D printing, laser cutting, and other traditional modeling techniques, we created this 1/8” = 1’ - 0” site model in order to explore its relation to the existing landscape of Loch Haven. Since our pavilion is centered around cardiology, we chose to incorporate elements that would further embrace this theme. The skin of the building reflects the rhythm human heartbeat, the large circular windows resemble arteries, the program is divided into 4 chambers, and the building itself is subtly shaped like a human heart. To access the pavilion, guests can utilize the stairs from the primary entrance, the ramp from the secondary entrance, or the walkway from the tertiary entrance. Since the pavilion is intended to be a temporary structure, it is entirely made out of lightweight material, including steel, wood, and glass.
